Portables sous Ubuntu 6.06 LTS

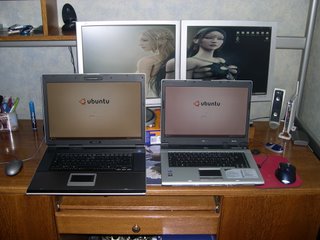

Mes différentes machines sous Ubuntu 6.06 LTS

Asus A7VC-R011H et Acer apspire 1642 WLMi

Asus A7vc :( détails et fichiers de configuration)
sortie de commande "lspci"

0000:00:00.0 Host bridge: Intel Corporation Mobile 915GM/PM/GMS/910GML Express P rocessor to DRAM Controller (rev 04)
0000:00:01.0 PCI bridge: Intel Corporation Mobile 915GM/PM Express PCI Express R oot Port (rev 04)
0000:00:1b.0 0403: Intel Corporation 82801FB/FBM/FR/FW/FRW (ICH6 Family) High De finition Audio Controller (rev 04)
0000:00:1d.0 USB Controller: Intel Corporation 82801FB/FBM/FR/FW/FRW (ICH6 Famil y) USB UHCI #1 (rev 04)
0000:00:1d.1 USB Controller: Intel Corporation 82801FB/FBM/FR/FW/FRW (ICH6 Famil y) USB UHCI #2 (rev 04)
0000:00:1d.2 USB Controller: Intel Corporation 82801FB/FBM/FR/FW/FRW (ICH6 Famil y) USB UHCI #3 (rev 04)
0000:00:1d.3 USB Controller: Intel Corporation 82801FB/FBM/FR/FW/FRW (ICH6 Famil y) USB UHCI #4 (rev 04)
0000:00:1d.7 USB Controller: Intel Corporation 82801FB/FBM/FR/FW/FRW (ICH6 Famil y) USB2 EHCI Controller (rev 04)
0000:00:1e.0 PCI bridge: Intel Corporation 82801 Mobile PCI Bridge (rev d4)
0000:00:1f.0 ISA bridge: Intel Corporation 82801FBM (ICH6M) LPC Interface Bridge (rev 04)
0000:00:1f.1 IDE interface: Intel Corporation 82801FB/FBM/FR/FW/FRW (ICH6 Family ) IDE Controller (rev 04)
0000:01:00.0 VGA compatible controller: ATI Technologies Inc Radeon Mobility X70 0 (PCIE)
0000:03:00.0 Ethernet controller: Realtek Semiconductor Co., Ltd. RTL-8139/8139C /8139C+ (rev 10)
0000:03:01.0 CardBus bridge: Ricoh Co Ltd RL5c476 II (rev b3)
0000:03:01.1 FireWire (IEEE 1394): Ricoh Co Ltd R5C552 IEEE 1394 Controller (rev 08)
0000:03:01.2 0805: Ricoh Co Ltd R5C822 SD/SDIO/MMC/MS/MSPro Host Adapter (rev 17 )
0000:03:01.3 System peripheral: Ricoh Co Ltd R5C592 Memory Stick Bus Host Adapte r (rev 08)
0000:03:01.4 System peripheral: Ricoh Co Ltd xD-Picture Card Controller (rev 03)
0000:03:02.0 Multimedia controller: Philips Semiconductors SAA7133 Video Broadca st Decoder (rev d1)
0000:03:03.0 Network controller: Intel Corporation PRO/Wireless 2200BG (rev 05)

Fichier de configuration: xorg.conf


# /etc/X11/xorg.conf (xorg X Window System server configuration file)
#
# This file was generated by dexconf, the Debian X Configuration tool, using
# values from the debconf database.
#
# Edit this file with caution, and see the /etc/X11/xorg.conf manual page.
# (Type "man /etc/X11/xorg.conf" at the shell prompt.)
#
# This file is automatically updated on xserver-xorg package upgrades *only*
# if it has not been modified since the last upgrade of the xserver-xorg
# package.
#
# If you have edited this file but would like it to be automatically updated
# again, run the following command:
# sudo dpkg-reconfigure -phigh xserver-xorg

Section "Files"
FontPath "/usr/share/X11/fonts/misc"
FontPath "/usr/share/X11/fonts/cyrillic"
FontPath "/usr/share/X11/fonts/100dpi/:unscaled"
FontPath "/usr/share/X11/fonts/75dpi/:unscaled"
FontPath "/usr/share/X11/fonts/Type1"
FontPath "/usr/share/X11/fonts/100dpi"
FontPath "/usr/share/X11/fonts/75dpi"
# path to defoma fonts
FontPath "/var/lib/defoma/x-ttcidfont-conf.d/dirs/TrueType"
EndSection

Section "Module"
Load "i2c"
Load "bitmap"
Load "ddc"
Load "dri"
# Load "extmod"
SubSection "extmod"
Option "omit xfree86-dga"
EndSubSection
Load "freetype"
Load "glx"# 3D layer
Load "int10"
Load "type1"
Load "vbe"
EndSection

Section "InputDevice"
Identifier "Generic Keyboard"
Driver "kbd"
Option "CoreKeyboard"
Option "XkbRules" "xorg"
Option "XkbModel" "pc105"
Option "XkbLayout" "fr"
Option "XkbVariant" "latin9"
EndSection

Section "InputDevice"
Identifier "Configured Mouse"
Driver "mouse"
Option "CorePointer"
Option "Device" "/dev/input/mice"
Option "Protocol" "ExplorerPS/2"
Option "ZAxisMapping" "4 5"
Option "Emulate3Buttons" "true"
EndSection

Section "InputDevice"
Identifier "Synaptics Touchpad"
Driver "synaptics"
Option "SendCoreEvents" "true"
Option "Device" "/dev/psaux"
Option "Protocol" "auto-dev"
Option "HorizScrollDelta" "0"
EndSection

Section "InputDevice"
Driver "wacom"
Identifier "stylus"
Option "Device" "/dev/wacom" # Change to
# /dev/input/event
# for USB
Option "Type" "stylus"
Option "ForceDevice" "ISDV4" # Tablet PC ONLY
EndSection

Section "InputDevice"
Driver "wacom"
Identifier "eraser"
Option "Device" "/dev/wacom" # Change to
# /dev/input/event
# for USB
Option "Type" "eraser"
Option "ForceDevice" "ISDV4" # Tablet PC ONLY
EndSection

Section "InputDevice"
Driver "wacom"
Identifier "cursor"
Option "Device" "/dev/wacom" # Change to
# /dev/input/event
# for USB
Option "Type" "cursor"
Option "ForceDevice" "ISDV4" # Tablet PC ONLY
EndSection

Section "Device"
Identifier "ATI Technologies, Inc. Radeon Mobility X700 (RV410 PCIE)"
Driver "fglrx"
BusID "PCI:1:0:0"
Option "BusType" "PCIE"
Option "MonitorLayout" "LVDS,NONE"
Option "NoLogo"
EndSection

Section "Monitor"
Identifier "Écran générique"
Option "DPMS"
EndSection


Section "Screen"
Identifier "Default Screen"
Device "ATI Technologies, Inc. Radeon Mobility X700 (RV410 PCIE)"
Monitor "Écran générique"
DefaultDepth 24
SubSection "Display"
Depth 1
Modes "1440x900" "1024x768" "800x600" "640x480"
EndSubSection
SubSection "Display"
Depth 4
Modes "1440x900" "1024x768" "800x600" "640x480"
EndSubSection
SubSection "Display"
Depth 8
Modes "1440x900" "1024x768" "800x600" "640x480"
EndSubSection
SubSection "Display"
Depth 15
Modes "1440x900" "1024x768" "800x600" "640x480"
EndSubSection
SubSection "Display"
Depth 16
Modes "1440x900" "1024x768" "800x600" "640x480"
EndSubSection
SubSection "Display"
Depth 24
Modes "1440x900" "1024x768" "800x600" "640x480"
EndSubSection
EndSection

Section "ServerLayout"
Identifier "Default Layout"
Screen "Default Screen"
InputDevice "Generic Keyboard"
InputDevice "Configured Mouse"
InputDevice "stylus" "SendCoreEvents"
InputDevice "cursor" "SendCoreEvents"
InputDevice "eraser" "SendCoreEvents"
InputDevice "Synaptics Touchpad"
EndSection

Section "DRI"
Mode 0666
EndSection

(servez vous en comme model)


Acer 1642 WLMi
( détails et fichiers de configuration
sortie de commande<lspci
0000:00:00.0 Host bridge: Intel Corporation Mobile 915GM/PM/GMS/910GML Express P rocessor to DRAM Controller (rev 03)
0000:00:02.0 VGA compatible controller: Intel Corporation Mobile 915GM/GMS/910GM L Express Graphics Controller (rev 03)
0000:00:02.1 Display controller: Intel Corporation Mobile 915GM/GMS/910GML Expre ss Graphics Controller (rev 03)
0000:00:1b.0 0403: Intel Corporation 82801FB/FBM/FR/FW/FRW (ICH6 Family) High De finition Audio Controller (rev 04)
0000:00:1c.0 PCI bridge: Intel Corporation 82801FB/FBM/FR/FW/FRW (ICH6 Family) P CI Express Port 1 (rev 04)
0000:00:1c.1 PCI bridge: Intel Corporation 82801FB/FBM/FR/FW/FRW (ICH6 Family) P CI Express Port 2 (rev 04)
0000:00:1c.2 PCI bridge: Intel Corporation 82801FB/FBM/FR/FW/FRW (ICH6 Family) P CI Express Port 3 (rev 04)
0000:00:1d.0 USB Controller: Intel Corporation 82801FB/FBM/FR/FW/FRW (ICH6 Famil y) USB UHCI #1 (rev 04)
0000:00:1d.1 USB Controller: Intel Corporation 82801FB/FBM/FR/FW/FRW (ICH6 Famil y) USB UHCI #2 (rev 04)
0000:00:1d.2 USB Controller: Intel Corporation 82801FB/FBM/FR/FW/FRW (ICH6 Famil y) USB UHCI #3 (rev 04)
0000:00:1d.3 USB Controller: Intel Corporation 82801FB/FBM/FR/FW/FRW (ICH6 Famil y) USB UHCI #4 (rev 04)
0000:00:1d.7 USB Controller: Intel Corporation 82801FB/FBM/FR/FW/FRW (ICH6 Famil y) USB2 EHCI Controller (rev 04)
0000:00:1e.0 PCI bridge: Intel Corporation 82801 Mobile PCI Bridge (rev d4)
0000:00:1f.0 ISA bridge: Intel Corporation 82801FBM (ICH6M) LPC Interface Bridge (rev 04)
0000:00:1f.1 IDE interface: Intel Corporation 82801FB/FBM/FR/FW/FRW (ICH6 Family ) IDE Controller (rev 04)
0000:00:1f.3 SMBus: Intel Corporation 82801FB/FBM/FR/FW/FRW (ICH6 Family) SMBus Controller (rev 04)
0000:06:01.0 CardBus bridge: Texas Instruments PCI1510 PC card Cardbus Controlle r
0000:06:04.0 Network controller: Intel Corporation PRO/Wireless 2200BG (rev 05)
0000:06:08.0 Ethernet controller: Realtek Semiconductor Co., Ltd. RTL-8139/8139C
/8139C+ (rev 10)

Problèmes d'affichage pour un resolution en 1024x800
solutionlancez sudo apt-get install 915resolution) il vous faut avoir les dépots univers et multivers.
une fois 915résolution installé (
>sudo gedit /etc/default/915resolution)
mon propre "
915resolution" ci-dessous

#
# 915resolution default
#
# find free modes by /usr/sbin/915resolution -l
# and set it to MODE or set to 'MODE=auto'
#
# With 'auto' detection, the panel-size will be fetched from the VBE
# BIOS if possible and the highest-numbered mode in each bit-depth
# will be overwritten with the detected panel-size.
MODE=auto
#
# and set resolutions for the mode.
#
XRESO=1024
YRESO=800
#
# We can also set the pixel mode.
# Please note that this is optional,
# you can also leave this value blank.
BIT=

une fois cette manipe efectuée il va nous falloir edité notre " xorg.conf "
mon propre "xorg.conf" (qui va bien)

# /etc/X11/xorg.conf (xorg X Window System server configuration file)
#
# This file was generated by dexconf, the Debian X Configuration tool, using
# values from the debconf database.
#
# Edit this file with caution, and see the /etc/X11/xorg.conf manual page.
# (Type "man /etc/X11/xorg.conf" at the shell prompt.)
#
# This file is automatically updated on xserver-xorg package upgrades *only*
# if it has not been modified since the last upgrade of the xserver-xorg
# package.
#
# If you have edited this file but would like it to be automatically updated
# again, run the following command:
# sudo dpkg-reconfigure -phigh xserver-xorg

Section "Files"
FontPath "/usr/share/X11/fonts/misc"
FontPath "/usr/share/X11/fonts/cyrillic"
FontPath "/usr/share/X11/fonts/100dpi/:unscaled"
FontPath "/usr/share/X11/fonts/75dpi/:unscaled"
FontPath "/usr/share/X11/fonts/Type1"
FontPath "/usr/share/X11/fonts/100dpi"
FontPath "/usr/share/X11/fonts/75dpi"
# path to defoma fonts
FontPath "/var/lib/defoma/x-ttcidfont-conf.d/dirs/TrueType"
EndSection

Section "Module"
Load "i2c"
Load "bitmap"
Load "ddc"
Load "dri"
Load "extmod"
Load "freetype"
Load "glx"
Load "int10"
Load "type1"
Load "vbe"
EndSection

Section "InputDevice"
Identifier "Generic Keyboard"
Driver "kbd"
Option "CoreKeyboard"
Option "XkbRules" "xorg"
Option "XkbModel" "pc105"
Option "XkbLayout" "fr"
Option "XkbVariant" "latin9"
EndSection

Section "InputDevice"
Identifier "Configured Mouse"
Driver "mouse"
Option "CorePointer"
Option "Device" "/dev/input/mice"
Option "Protocol" "ExplorerPS/2"
Option "ZAxisMapping" "4 5"
Option "Emulate3Buttons" "true"
EndSection

Section "InputDevice"
Driver "wacom"
Identifier "stylus"
Option "Device" "/dev/wacom" # Change to
# /dev/input/event
# for USB
Option "Type" "stylus"
Option "ForceDevice" "ISDV4" # Tablet PC ONLY
EndSection

Section "InputDevice"
Driver "wacom"
Identifier "eraser"
Option "Device" "/dev/wacom" # Change to
# /dev/input/event
# for USB
Option "Type" "eraser"
Option "ForceDevice" "ISDV4" # Tablet PC ONLY
EndSection

Section "InputDevice"
Driver "wacom"
Identifier "cursor"
Option "Device" "/dev/wacom" # Change to
# /dev/input/event
# for USB
Option "Type" "cursor"
Option "ForceDevice" "ISDV4" # Tablet PC ONLY
EndSection

Section "Device"
Identifier "Intel 915GM"
Driver "i810"
BusID "PCI:0:2:0"
Option "ForceBIOS" "1920x1024=1024x800"
EndSection

Section "Monitor"
Identifier "Écran générique"
Option "DPMS"
HorizSync 28-64
VertRefresh 43-60
EndSection

Section "Screen"
Identifier "Default Screen"
Device "Intel 915GM"
Monitor "Écran générique"
DefaultDepth 24
SubSection "Display"
Depth 1
Modes "1280x800"
EndSubSection
SubSection "Display"
Depth 4
Modes "1280x800"
EndSubSection
SubSection "Display"
Depth 8
Modes "1280x800"
EndSubSection
SubSection "Display"
Depth 15
Modes "1280x800"
EndSubSection
SubSection "Display"
Depth 16
Modes "1280x800"
EndSubSection
SubSection "Display"
Depth 24
Modes "1280x800"
EndSubSection
EndSection

Section "ServerLayout"
Identifier "Default Layout"
Screen "Default Screen"
InputDevice "Generic Keyboard"
InputDevice "Configured Mouse"
InputDevice "stylus" "SendCoreEvents"
InputDevice "cursor" "SendCoreEvents"
InputDevice "eraser" "SendCoreEvents"
EndSection

Section "DRI"
Mode 0666
EndSection

il vous reste à relancer le serverx ====>Ctrl+Alt+Retour Arrière

normalement tout est ok
